CadenzaAnalytics is the official package for fast and easy creation of disy Cadenza analytics extensions with R. It enables extending disy Cadenza with advanced analytics using R.

This package is in beta status: it can be used for testing, but there may be breaking changes before a full release.


 !! This module is currently in beta status !!

    It can be used for testing, but there may be breaking changes before a full release.
    This documentation is still under developement as well.

disy Cadenza Analytics Extensions

An Analytics Extension extends the functional spectrum of disy Cadenza with an analysis function or a visualisation type. An Analytics Extension is a web service that exchanges structured data with disy Cadenza via the Cadenza API. A user can integrate an analysis extension into disy Cadenza via the Management Center and manage it there (if they have the appropriate rights).

As of disy Cadenza Autumn 2023 (9.3), the following types and capabilities of analysis extensions are officially supported:

• Visualization The Analytics Extension type visualization provides a new visualization type for displaying a bitmap image (PNG).

• Data enrichment The Analytcs Extension type enrichment returns data that enriches an existing Cadenza object type by adding additional attributes, which virtually add additional columns to the original data set.

• Data generation The Analytics Extension type calculation provides a result data set that is created as a new Cadenza object type.

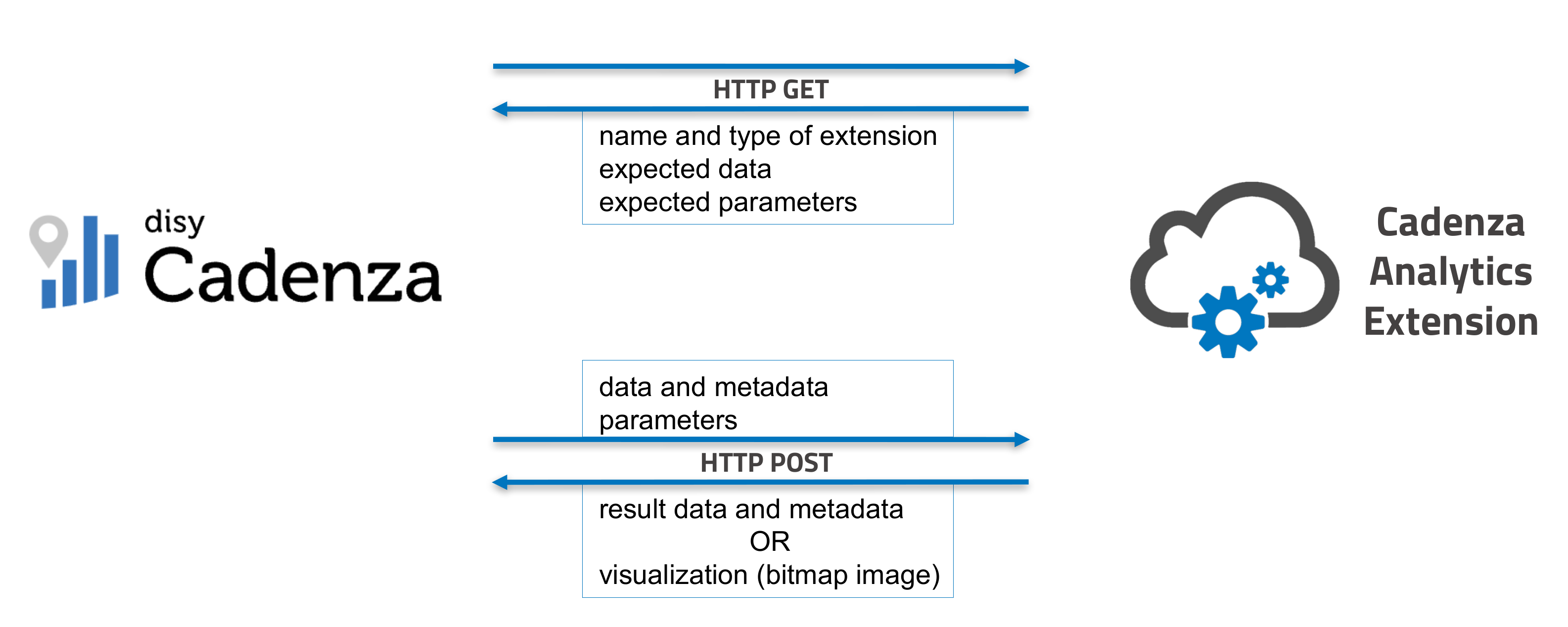

Communication

An Analytics Extension defines one endpoint that, depending on the HTTP method of the request, is used to supply the Extension’s configuration to disy Cadenza, or exchange data and results with Cadenza respectively.

When receiving an HTTP(S) GET request, the endpoint returns a JSON representation of the extention’s configuration. This step is executed once when registering the Analytics Extension from the disy Cadenza Management Center GUI and does not need to be repeated unless the extension’s configuration changes.

By sending an HTTP(S) POST request to the same endpoint and including the data, metadata and parameters as specified in the extension’s configuration as payload, the extension is executed. This step is executed each time that the Analytics Extension is invoked from the disy Cadenza GUI and Cadenza takes care of properly formatting the payload.

The cadenzaanalytics module provides the functionality to abstract the required communication and easily configure the Analytics Extension’s responses to the above requests.

Defining an API

For disy Cadenza to make use of the APIs, both a @get and @post request must be defined. This can be done using the plumber package similar to the following:

#* 'GET description'
#* 'GET parameter description'
#* @get '/endpoint-name'
#* @serializer 'GET serializer'
function(){

}

#* 'POST description'
#* @preempt 'POST Filter'
#* @parser 'POST parser'
#* @param 'Post parameter'
#* @post '/endpoint-name'
#* @serializer 'POST serializer'
function(){

}

A working minimal example would be the following:

library(dplyr)

#* GETCapabilities-Request of the row wise sum extension
#* This extension's parameters are:
#* @get /rowSum
#* @serializer cadenza_capabilities_response
function() {
  extension(
    printName = "Calculate row wise sum",
    extensionType = "enrichment",
    attributeGroups = list(
      attribute_group(
        name = "toSum",
        printName = "Columns to use",
        dataTypes = c("int64", "float64"),
        minAttributes = 1L
      )
    )
  )
}

## POST --------------
#* Compute row wise sums
#* @post /rowSum
#* @parser cadenza
#* @serializer cadenza_enrichment_calculation
function(data, metadata, column_info) {

  # Select the colums to sum over
  to_sum <- column_info |>
    filter(attributeGroupName == "toSum") |>
    pull(name)
  # Select the ID column
  id_column <- column_info |>
    filter(attributeGroupName != "toSum") |>
    pull(name)

  # Sum across each row
  colnames(data)[min(which(regexpr(id_column, colnames(data)) > -1))] <- "ID"
  result <- data |>
    rowwise("ID") |>
    summarise(result = sum(c_across(c(!!!to_sum)))) |>
    ungroup()

  as_cadenza_enrichment_calculation(result)
}

Adding extension discovery

Implement a discovery endpoint following inst/plumber/discovery.R.

# GET ----------------
#* DiscoveryRequest for the defined analytics extensions
#* @get /
#* @serializer cadenza_discovery_response
function () {
  discovery(
    extensions = list(
      extension_reference(
        extensionPrintName = "The Name",
        extensionType = "calculation",
        relativePath = "/path-of-extension"
      )
    )
  )
}

Installation

As long as this package is in beta, it is only available on GitHub, and an installation via source is necessary.

Requirements and Dependencies

The requirements of the extension are documented in the README.

The first version of disy Cadenza that supports Analytics Extensions is disy Cadenza Autumn 2023 (9.3). For each disy Cadenza version, the correct corresponding library version needs to be used:

disy Cadenza version	CadenzaAnalytics version
9.3 (Autumn 2023)	< 0.2.0 (beta)

Installation and setup in plain R

After cloning the git repository, install the dependencies and the package by sourcing install_CadenzaAnalytics.R in an R session inside the cloned directory (cadenza-analytics-r):

source("install_CadenzaAnalytics.R")

The file install_CadenzaAnalytics.R contains some user-settings. Adjust those to your needs.

Installation and setup in R-Studio

After cloning the git repository, use

library(CadenzaAnalytics)

to import the package into R. Note, that CadenzaAnalytics.Rproj needs to be in the same directory as your R-script for this to work.

Cadenza Analytics R uses swagger and plumber in tandem to enable users to host their own analytics extensions. To start, either use install_CadenzaAnalytics.R or host your own endpoints:

root <- Plumber$new()
a <- Plumber$new('path_to_script_1')
b <- Plumber$new('path_to_script_2')
pr_mount(root, '/the-route', a)
pr_mount(root, '/the-route', b)
options("plumber.port" = 9292)
root$run()
